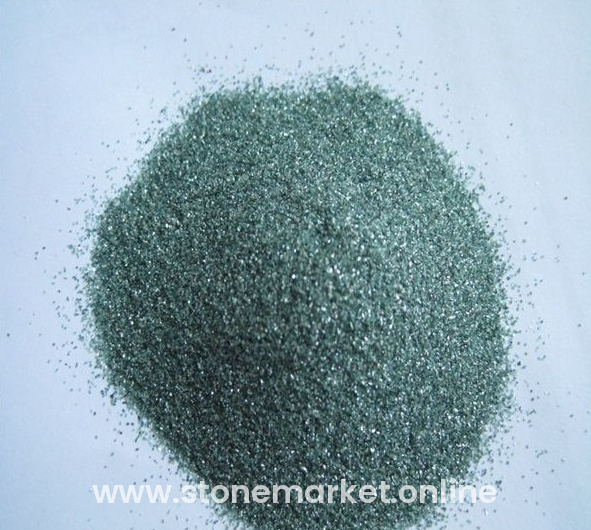

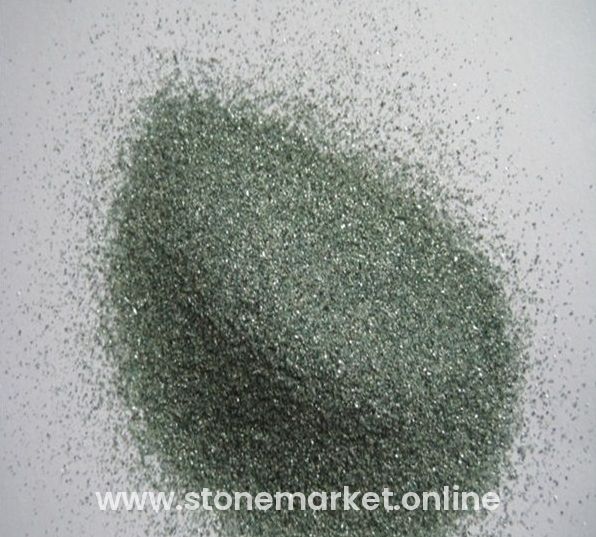

China Manufacture SiC F20 Green Silicon Carbide
Green Silicon Carbide For Surface treatment
Green silicon carbide is characterized by extreme hardness (Mohs 9.4/2600 Knoop) which only rank after CBN and B4C.
Green Silicon Carbide (SiC) is an extremely hard (Mohs 9.4 / 2600 Knoop) man made mineral that possesses high thermal conductivity and high strength at elevated temperatures (at 1000 centigrade, SiC is 7.5 times stronger than Al2O3). SiC has a modulus of elasticity of 410 GPa, with no decrease in strength up to 1600 centigrade, and it does not melt at normal pressures but instead dissociates at 2600 centigrade.
Green silicon carbide is widely used for surface treatment such as abrasive blasting, sand blasting, lapping, microlapping, polishing, grinding, etc.
Description:
Green Silicon Carbide is produced at high temperature in an electric resistance type furnace with quarts sand and petroleum coke. It is a synthetic brittle carborundum with high thermal conductivity and high strength which get no decrease in 1000 centigrade (7.5 times stronger than Alumina)
Characteristic:
Extremely high hardness
High wear and hardness resistance
High strength, high temperature resistance
High temperature strength
Applications:
|
PZT/ Piezoelectric ceramic Polishing
|
F240,F1000
|
|
Polishing Quartz glass
|
F80,F120,F280,F360,F500,F600,F800
|
|
Titanium products / Titanium alloy kitchenware
|
F120
|
|
Polishing Marble, Granite
|
F46,F60,F80,F120,F180,F220,F280,F320,F360,F400,
F500,F600,F800,F1000
|
|
Blasting carbide alloy cutting tools
|
F24,F46,F120,F220,F280,F320
|
|
Lapping thin brittle material precise component
|
F360,F400,F800,F1000
|
|
TYPICAL CHEMICAL ANALYSIS
|
|
Chemical Content
|
F20-F220
|
F230-F2000
|
|
SiC
|
Min 99%
|
Min 98.5%
|
|
SiO2
|
Max 0.50%
|
Max 0.70%
|
|
F,Si
|
Max 0.20%
|
Max 0.40%
|
|
Fe2O3
|
Max 0.10%
|
Max 0.15%
|
|
F.C
|
Max 0.20%
|
Max 0.30%
|
|
L.O.I
|
Max 0.05%
|
Max 0.09%
|
|
TYPICAL PHYSICAL PROPERTIES
|
|
Hardness:
|
Mohs:9.5
|
|
Specific Gravity:
|
3.2g/cm3
|
|
Bulk density(LPD):
|
1.2-1.6 g/cm3
|
|
Color:
|
Green
|
|
Particle shape:
|
Hexagonal
|
|
Melting Point:
|
Dissociated at about 2600 centigrade
|
|
Maximum service temperature:
|
1900 centigrade
|
|
Friability
|
Friable
|
- Precision polishing for hard optical glass such as camera lens.
2. Glaze, floor coating, floor & wall laminates
3. Precision polishing, lapping in silicon wafer industry
4. Lapping soft metal including aluminum alloy, copper alloy etc.
5. Polishing hard alloy, non-ferrous metal, plastic, etc.
6. Working on super hard metal.
7. Additives in Teflon painting
8. Additives in Nano Aerogel fire-proof material
9. Raw material for polishing tools.
10. Raw material for technical ceramics.
11. Wire sawing
