Quarrying Wire Saw Machine With PMSM

FOB Price : 17555 - 18555 $

Others

Usage: Granite,Marble,Limestone,Slate,Onyx,Basalt,Quartzite,Sandstone,Travertine

After Sale

Warranty:9 Months

Install and Guarantee: Remote Guidance Installation,

Maintenance: Remote troubleshooting

Trade Terms

Port:china,,

Shipment Terms:Express Delivery,FOB

Payment:T/T,Cash

Supplier

Eatablished :06 Jun 2012

Main Product: granite,marble

Send your message to this supplier
*From:
*To: user Robin Yang
*Content:

Enter between 20 to 4,000 characters.

Send This is not what you are looking for? Post a Sourcing Request Now

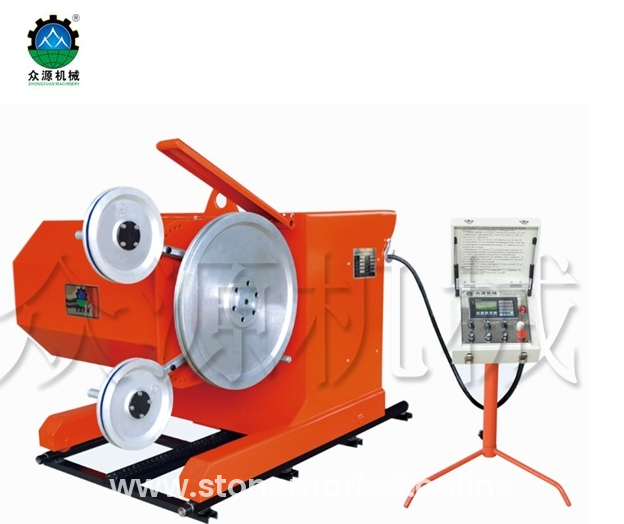

Quarrying Wire Saw Machine With PMSM

Fujian Xiapu Zhongyuan Machinery Co., Ltd.

Robin Yang

China

Verified

Tel: 8618350356669

Machinery Function Features
1.Being controlled by two sets of inverters and applying constant tension control principle, the moving speed of the machine can be adjusted automatically accordingto the changes of the cutting force to make sure the diamond wire saw be in the best cutting condition all the time. 2.The machine is without phase request. It doesn' t need to change or distinguish the power phase. The machine has the following protection functions: wire broken protection, over-loading,protection,open-phase protection, terminal limit, and so on. 3.The lateral moving and the rotation angle of the cutting head are controlled and driven by electric motor. There is photoelectric proximity switch installed on thecutting head for position limitation protection. This function enables the machine to work normally under harsh circumstance with moisture and dust. 4.The real-time parameters are displayed on the control platform, such as the set current of the main motor, the current and the rotation speed of the main motor,etc. It makes the operation and adjustment of the machine more convenient. 5.The machine can be operated manually and automatically. The manual and automatic functions can be shifted from each other. Under the automatic function, themachine can be unattended operated, and one worker is able to operate multiple machine. 6.Using pernanent magnet synchronous motor, the wire saw machine is more energy saving, large torque, and higher efficient.
Technical Data
Parameter Unit ZY-55YG
Total Weight 6 3000

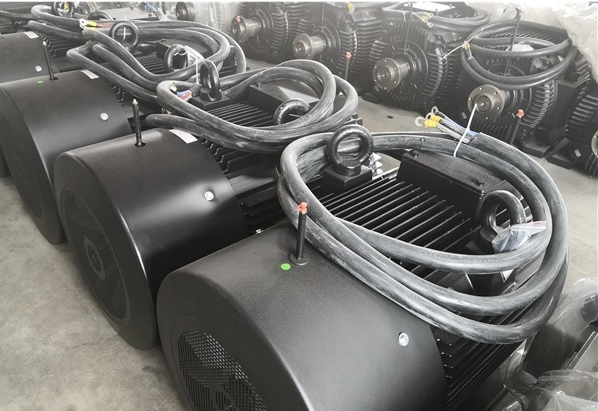

Components

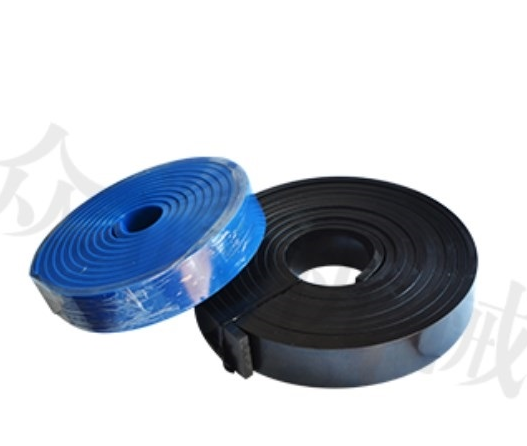

Consumables
