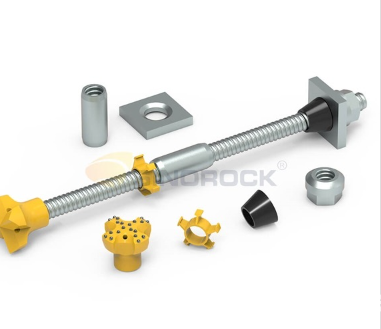

R25 Self-Drilling Anchor Bolts System
Min Order : 100Sets

Luoyang Sinorock® Engineering Material Co., Ltd

Mr.Jack Xin

China

Verified

Tel: 86-17753225039

Product Description

Technical Data:

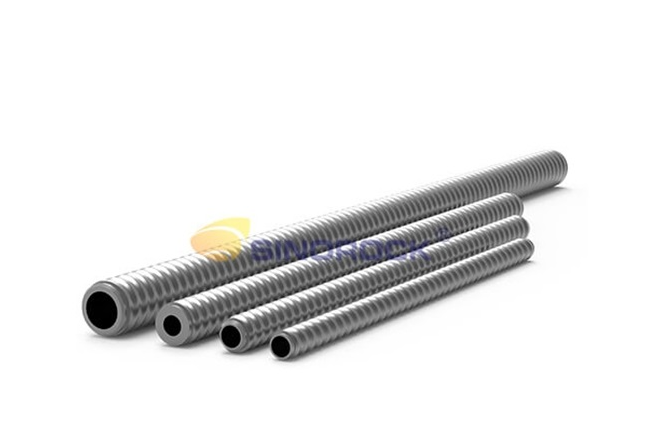

Hollow Anchor Bar
Size Outer Dia.
(mm)
Ultimate Load
(kN)
Yield Load
(kN)
Weight
(Kg/m)
SER25N 25 200 150 2.35

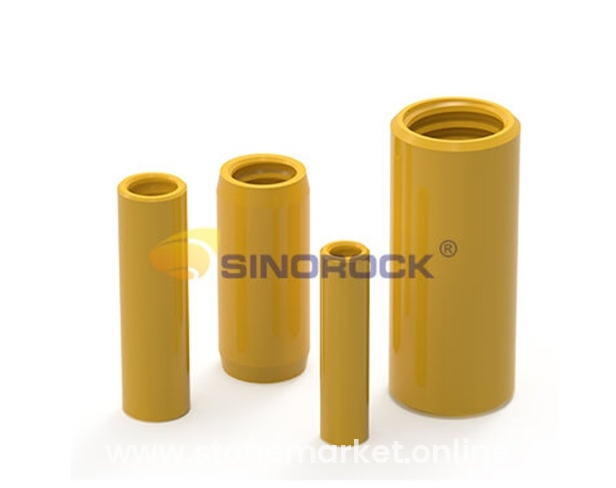

Coupler
Size Outer Dia.
(mm)
Length
(mm)
Weight
(Kg/pc)
Note
SSR25 36 150 0.66 With sealing structure
SER25 36 150 0.68 Without sealing structure

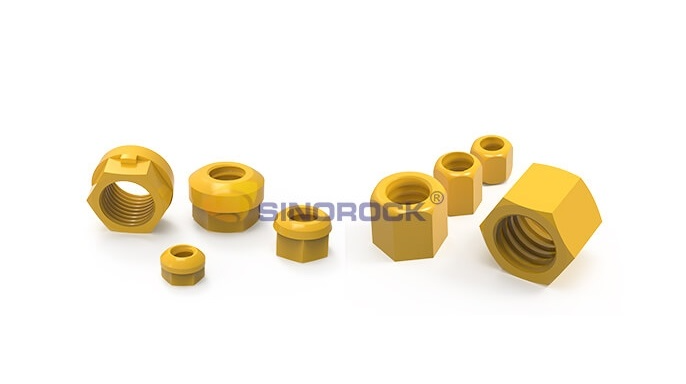

Hex Nut
Size Key Size
(mm)
Length
(mm)
Weight
(Kg/pc)
Note
SSR25 41 30 0.20 Heat treatment
SER25 41 35 0.23 Without heat treatment
Domed Nut
Size Key Size
(mm)
Length
(mm)
Weight
(Kg/pc)
Note
SER25 41 40.5 0.31 Without heat treatment

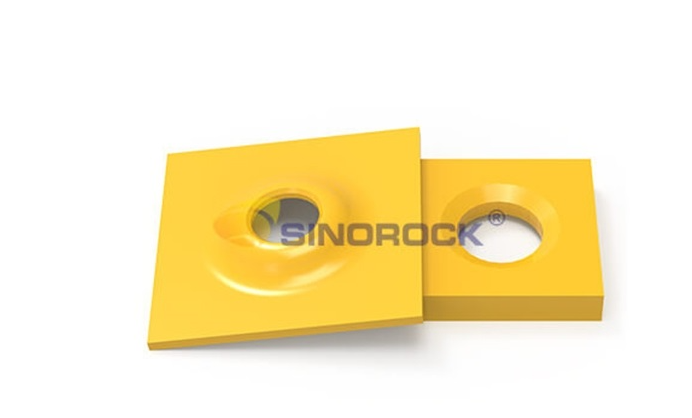

Domed Plate
Size Dimensions
(mm)
Thickness
(mm)
Hole Dia.
(mm)
Weight
(Kg/pc)
SER25 150×150 8 30 1.40
150×150 5 28 0.85
200×200 10 32 3.20

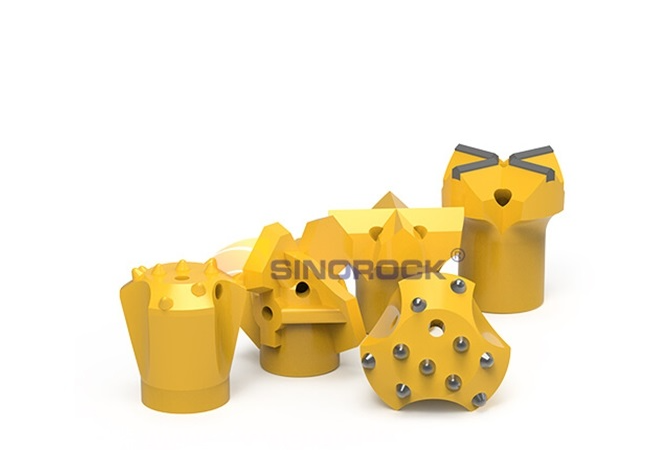

Drill Bit
Size Outer Dia.
(mm)
Application Range (Advice)
EX Sand, fills, gravel
SSR25/42 42
SSR25/51 51
EXX Softer sedimentary rocks such as marls, mudstones, siltstone
SSR25/42 42
SSR25/51 51
ES-F Gravel, soft rock
SSR25/42 42
SSR25/51 57.5
ESS-F Weathered rock, stone walls, rubble
SSR25/42 42
SSR25/51 51
EY Competent ground, strong rock
SSR25/51 51
